GE S/5 AM
| Cable | Adapter | Port | VR Device Name |
|---|---|---|---|
| direct serial cable | Null Modem (F/F) | X8 | Bx50 |
Connection Steps

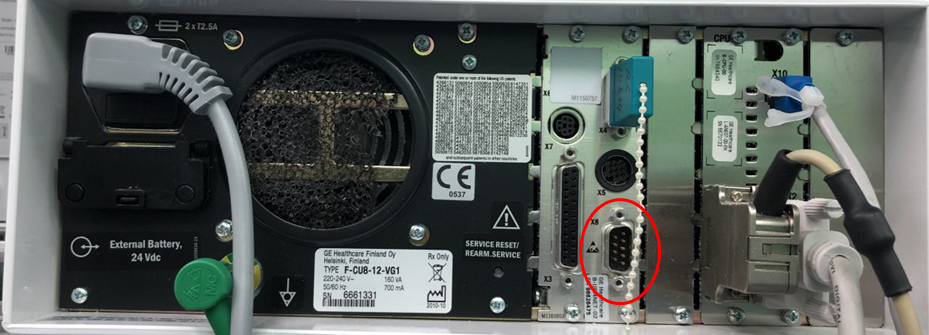

- Connect a direct serial cable to the monitor’s X8 port using a null modem (F/F).
Device Configuration
No changes to the monitor settings are required.
Vital Recorder Setup
- Add the device as
Bx50and select the PC serial port used for the connection. - Default waveforms are
ECG1, PLETH, IABP1, CO2, AWP; request others withwavs=— see Configuration Guide → S5 / Datex Device Settings. Invasive arterial pressure isIABP1, notARTorINVP1.
