Fresenius Vial Orchestra (Base Primea with Module DPS)

Fresenius Vial Orchestra (Base Primea with Module DPS)

CableAdapterPortVR Device Name
direct serial cableNull Modem adapter (M/F)RS 232-3Orchestra

Connection Steps

  1. Attach the Null Modem adapter (M/F) to RS 232-3.
  2. Connect a direct serial cable from the adapter to the PC, via a USB-Serial converter if the PC has no DB-9 port.
Rear of the Base Primea showing RS 232-1 and RS 232-2 stacked on the left and the rightmost RS 232-3 port circled

Device Configuration

  1. Power the unit off. Hold the top blue side button + mute button + power button together to boot into service mode.

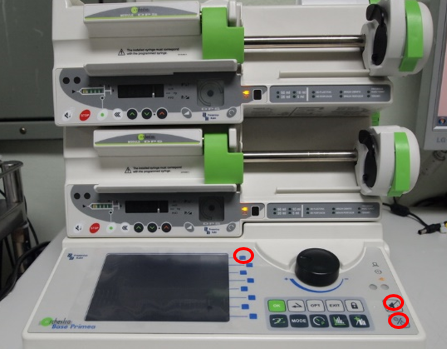

Base Primea with two DPS syringe modules mounted, with the top blue side button and the two lower-right buttons circled for the service-mode key combination
  1. In SPECIAL FUNCTIONS, press the side button next to "Serial & ..." (the fourth blue button from the top).

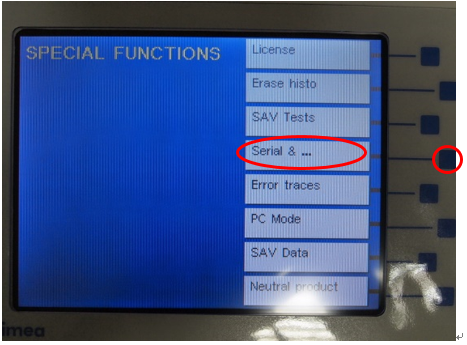

SPECIAL FUNCTIONS menu listing License, Erase histo, SAV Tests, Serial & ..., Error traces, PC Mode, SAV Data and Neutral product, with Serial & ... and its side button circled
  1. The Serial, Supervisor and Print Configuration screen appears. Using the jog dial, set COM NEW SUP (second entry in the right-hand column of SERIAL PORTS) to 3.
  2. In the COMM NEW SUP panel at the lower right, leave "Send a frame on every change" unchecked and set "Send every" to 1 s.

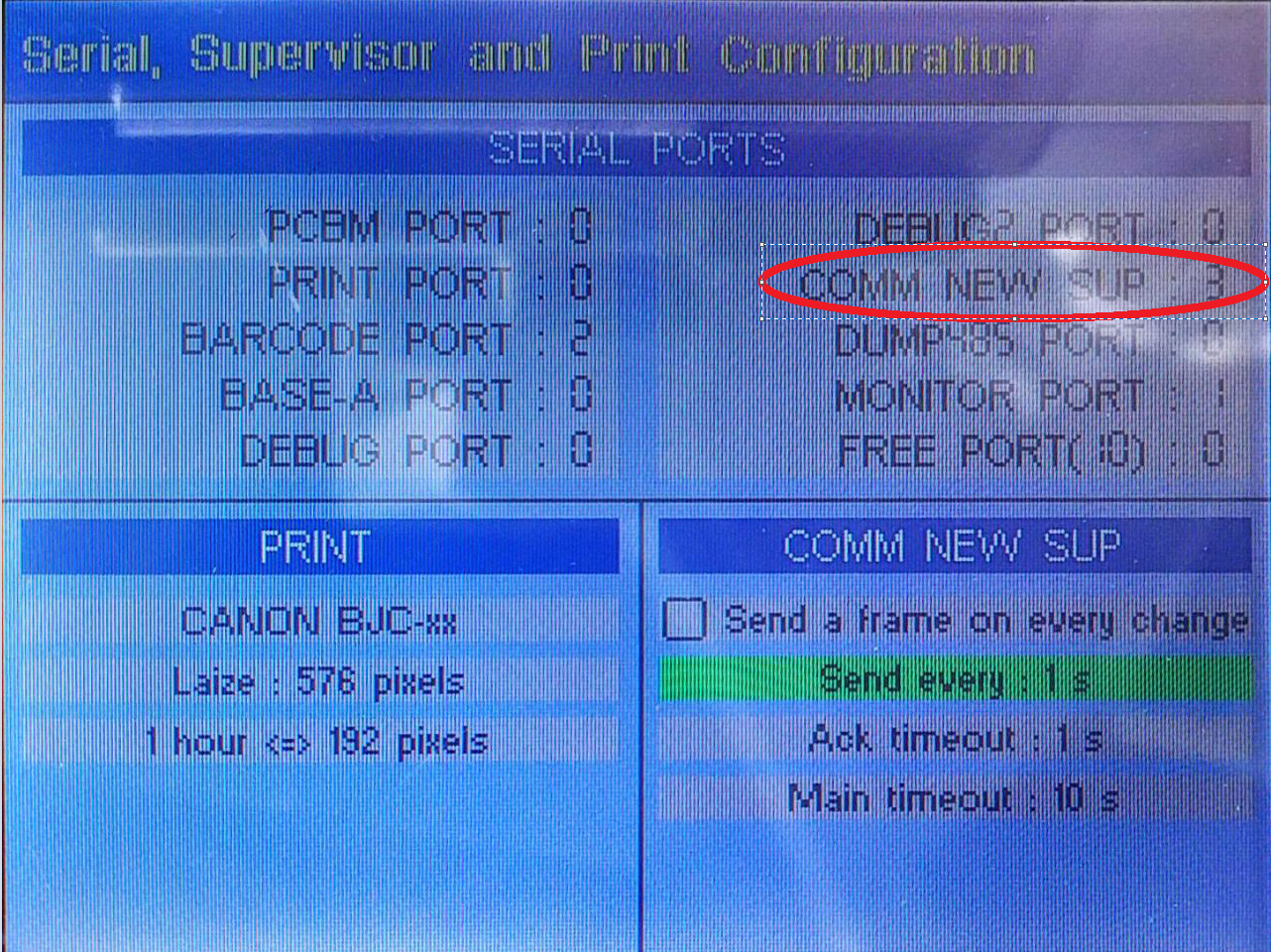

Serial, Supervisor and Print Configuration screen with COMM NEW SUP set to 3 circled, and the COMM NEW SUP panel showing Send a frame on every change unchecked, Send every 1 s, Ack timeout 1 s and Main timeout 10 s
  1. Power the unit off, then on again to leave service mode.
  2. At the start-up screen, press the OPT button at the lower right of the front panel.

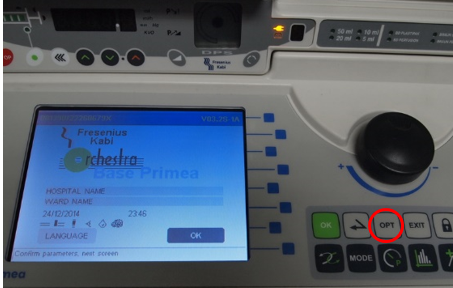

Base Primea start-up screen showing hospital and ward name with the OPT button on the lower-right keypad circled
  1. In the OPTIONS MENU, select CUSTOMISATION.

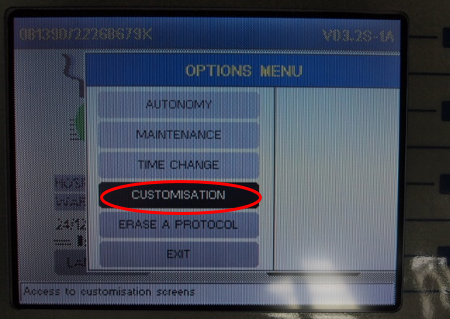

OPTIONS MENU listing Autonomy, Maintenance, Time change, Customisation, Erase a protocol and Exit, with Customisation circled
  1. On the CONFIGURATION screen, enter access code 00123 in the CODE field. Until a valid code is entered the advanced entries (including Serial ports and printer) stay greyed out.

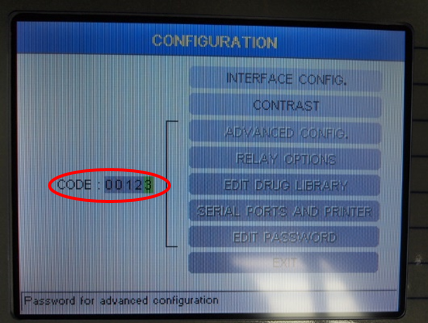

CONFIGURATION screen with CODE 00123 entered and circled, and the advanced menu entries still greyed out
  1. Select SERIAL PORTS AND PRINTER, now enabled.

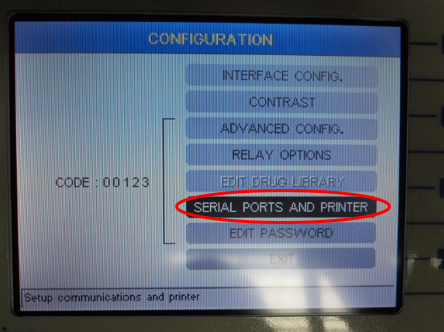

CONFIGURATION screen with code 00123 accepted and SERIAL PORTS AND PRINTER circled among the now-enabled menu entries
  1. In SERIAL PORTS, open the RS232-3 entry and select IDMS from the drop-down list
<img src="../hardware_images/fresenius_orchestra_8.png" width="450" alt="SERIAL PORTS AND PRINTER screen with the RS232-3 drop-down open showing Not connected, Printer, PCBM, PCBM + Printer and IDMS, with RS232-3 and IDMS circled">
  1. Confirm the list now reads RS232-3 IDMS, then press SAVE AND EXIT. Power-cycle the unit for the setting to take effect.
<img src="../hardware_images/fresenius_orchestra_9.png" width="450" alt="SERIAL PORTS AND PRINTER screen with RS232-3 IDMS circled and the SAVE AND EXIT button circled">
- Choosing **DISCARD CHANGES AND EXIT** here loses the assignment silently, and the unit will record nothing.

Vital Recorder Setup

  • Add the device in Vital Recorder as Orchestra.
