Medtronic (Aspect Medical) BIS VISTA
Note: Use a direct serial cable only. A cross cable can drive the monitor into an "Unrecoverable Monitor Exception" screen, which halts monitoring until the unit is reset.
| Cable | Adapter | Port | VR Device Name |
|---|---|---|---|
| direct serial cable | None | RS-232 port | VISTA |
Connection Requirements
| Serial Protocol option | What it carries | Vital Recorder device to select |
|---|---|---|
| ASCII | All numeric parameters (BIS, EMG, SQI, SR) | VISTA |
| Legacy Binary | Numerics plus 128 Hz EEG waveform | BIS (binary) |
| VISTA Binary | Vendor-specific binary format — not used by Vital Recorder | — |
Serial: 57600 baud. Choose Legacy Binary if the EEG waveform is needed; ASCII is sufficient for numerics only.
Connection Steps
- Connect a direct serial cable (NOT a cross cable) to the RS-232 port.
If this screen appears, the cable is wrong. Disconnect it, press the on-screen Reset or the recessed reset button on the rear panel, and re-connect with a direct cable.
Device Configuration

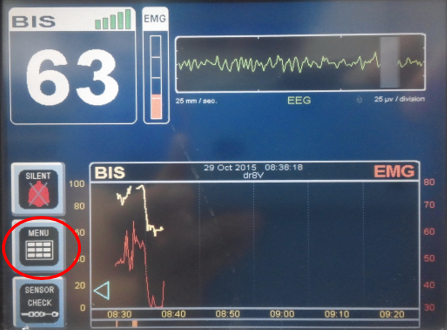

- Press the MENU key on the left-hand button strip of the monitoring screen.

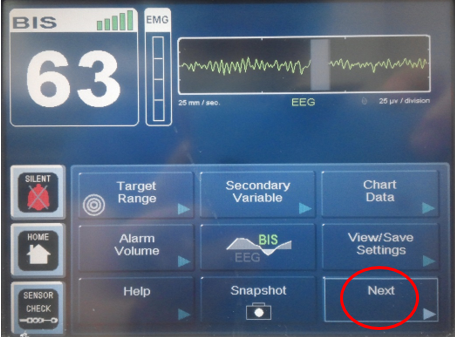

- On the first menu page press Next.

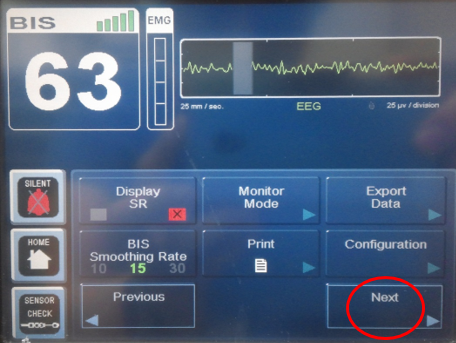

- On the second menu page press Next again.
- On the third menu page press Maintenance.
- In the Maintenance menu press Serial Protocol.
- Tick the protocol you need, then press Save Setting.
- ASCII — all numeric data.
<img src="../hardware_images/medtronic_bis_vista_6.png" width="450" alt="BIS VISTA Serial Protocol screen with the ASCII checkbox ticked and circled; Legacy Binary and VISTA Binary unticked; Save Setting button at the bottom right">
- Legacy Binary — numerics plus the 128 Hz EEG waveform. Select BIS (binary) as the device in Vital Recorder.
<img src="../hardware_images/medtronic_bis_vista_7.png" width="450" alt="BIS VISTA Serial Protocol screen with the Legacy Binary checkbox ticked and circled; ASCII and VISTA Binary unticked">
- Press Return to Previous Menu → Home, then restart the monitor. The new protocol is not active until the unit has been power-cycled.
Vital Recorder Setup
- With ASCII selected on the monitor, add the device as
VISTA. - With Legacy Binary selected, add it as
BIS (binary)instead — this is the only way to record the 128 Hz EEG waveform.
