Medtronic INVOS Cerebral/Somatic Oximetry (5100C)
Medtronic INVOS Cerebral/Somatic Oximetry (5100C)
| Cable | Adapter | Port | VR Device Name |
|---|
| direct serial cable | Null Modem (F/F) | \|O\|O\| RS-232 port | Invos |
Connection Steps
- Connect a direct serial cable to the |O|O| port on the rear of the device using a null modem adapter (F/F).
Device Configuration

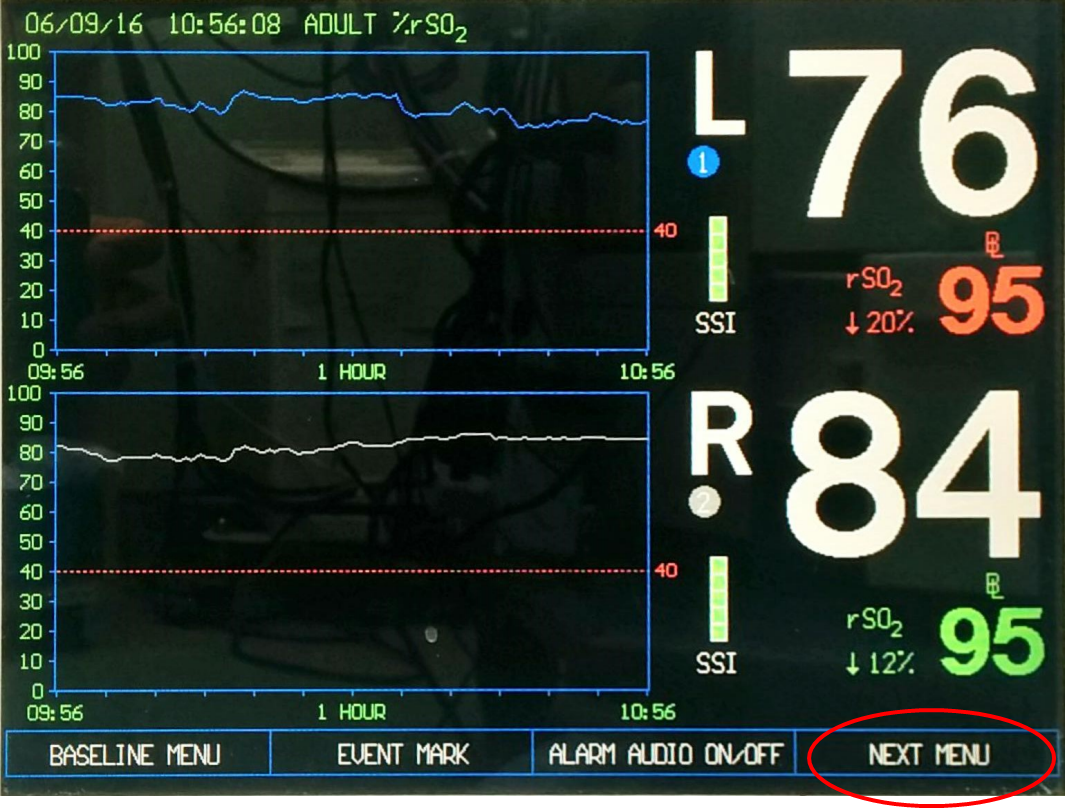

- On the monitoring screen press NEXT MENU.
- Press OUTPUT SELECT.
- Press DIGITAL OUTPUT
- Press PC LINK.
- On the RS-232 DIGITAL OUTPUT FORMAT SELECTION screen choose OUTPUT FORMAT 1.
Vital Recorder Setup
- Add the device as
INVOS and select the PC serial port used for the connection.
