Edwards Lifesciences Vigilance
Note: Digital port configuration is required before use. See Device Configuration below.
| Cable | Adapter | Port | VR Device Name |
|---|---|---|---|
| Direct Serial | Null Modem M/F | COM1 (or COM2) | Vigilance |
Connection Steps

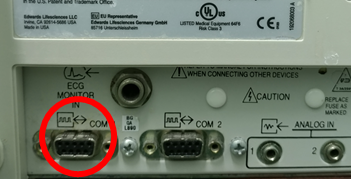

- Attach a Null Modem (M/F) to COM1.
- Connect a direct serial cable from the adapter to the PC via USB-Serial converter.
Device Configuration

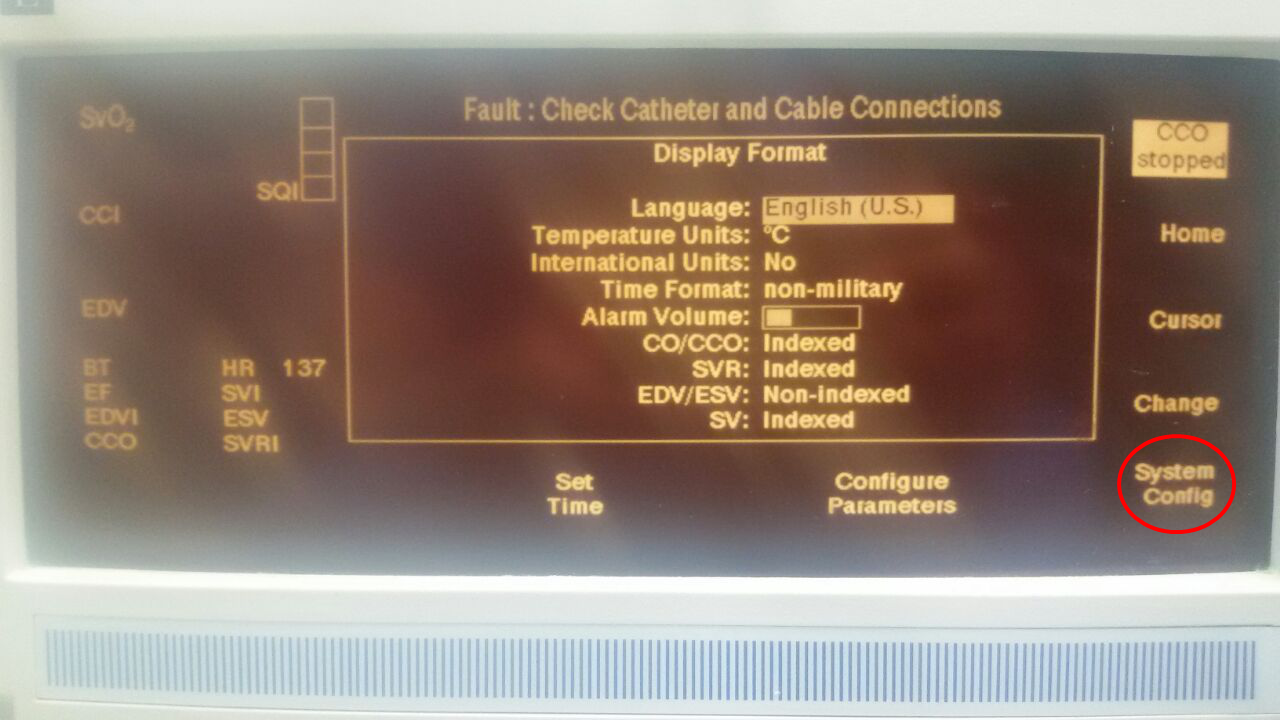

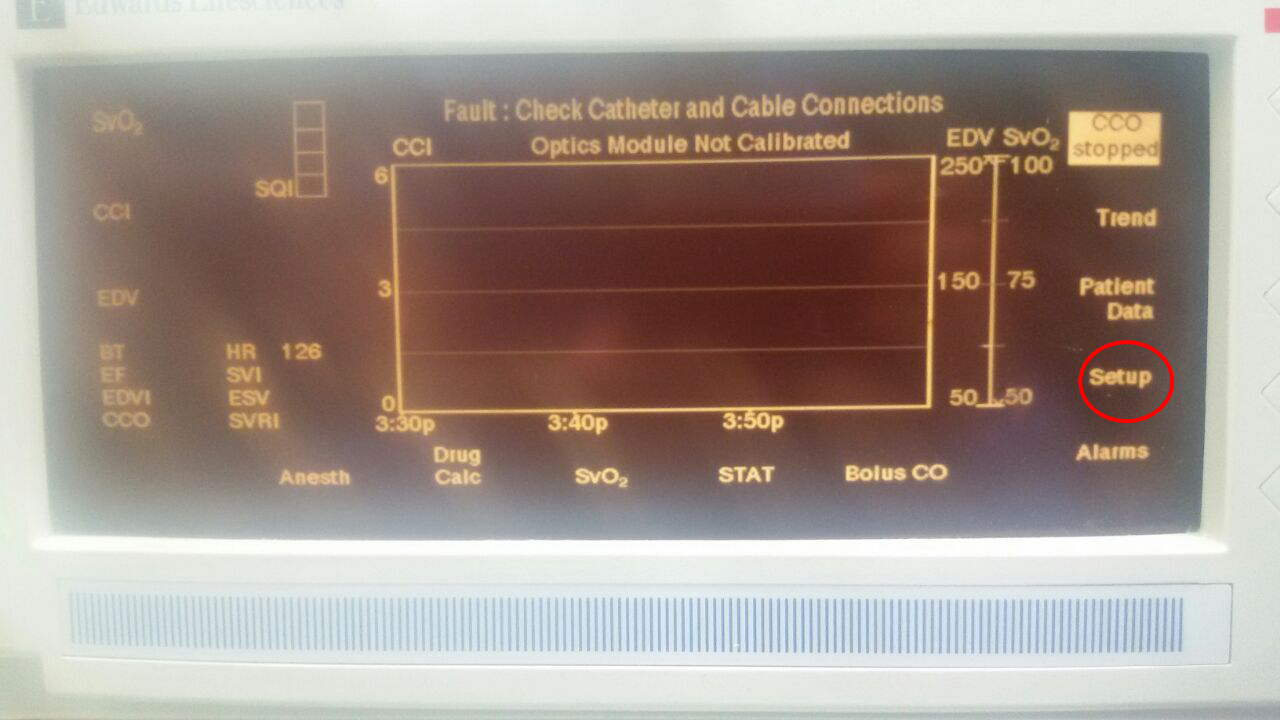

- Press Setup → System Config → Return → Digital Ports.
- Configure COM1:
| Parameter | Value | |-----------|-------| | Device | IFMout | | Baud Rate | 9600 | | Parity | None | | Stop Bits | 1 | | Data Bits | 8 | | Flow Control | 2 seconds |
