Edwards Lifesciences Vigileo

Edwards Lifesciences Vigileo

Note: Serial port configuration is required before use. See Device Configuration below.

CableAdapterPortVR Device Name
Direct SerialNull Modem M/FSerial portVigileo

Connection Steps

  1. Attach a Null Modem (M/F) to the rear serial port.
  2. Connect a direct serial cable to the PC via USB-Serial converter.
Vigileo — rear serial port

Device Configuration

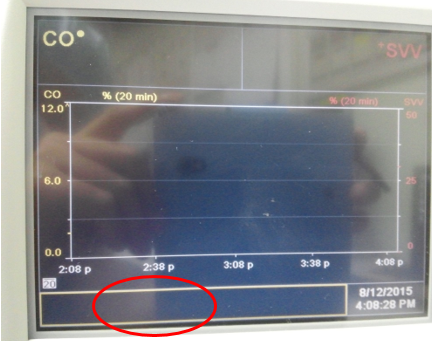

  1. Tap an empty space at the bottom left of the screen to open the setup menu.
  2. Select Serial Port Setup → IFMout (Device field).
Device = IFMout
  1. Select 9600 (Baud Rate field) → Return → exit.
