GE B105M / B115M / B125M

GE B105M / B115M / B125M

Note: Requires serial port configuration on firmware version 4 and later. See Device Configuration below.

CableAdapterPortVR Device Name
Direct SerialNoneSerial port marked in redB1x5M

Connection Steps

  1. Connect a direct serial cable to the serial port marked in red on the rear.
  2. Connect the other end to the PC via USB-Serial converter.

Device Configuration

Note: This configuration is required for firmware version 4 and later only.

⚠️ Service login required. When prompted, enter the credentials below:

FieldValue
IDservice
Passwordlcsmsteam or wh1tef1sh
  1. On the monitor, navigate to Install/Service → Service → Page 3.
  2. Tap S5/Anesthesia.
  3. Set S/5 Channel 1 to Serial and Baudrate to 19200.

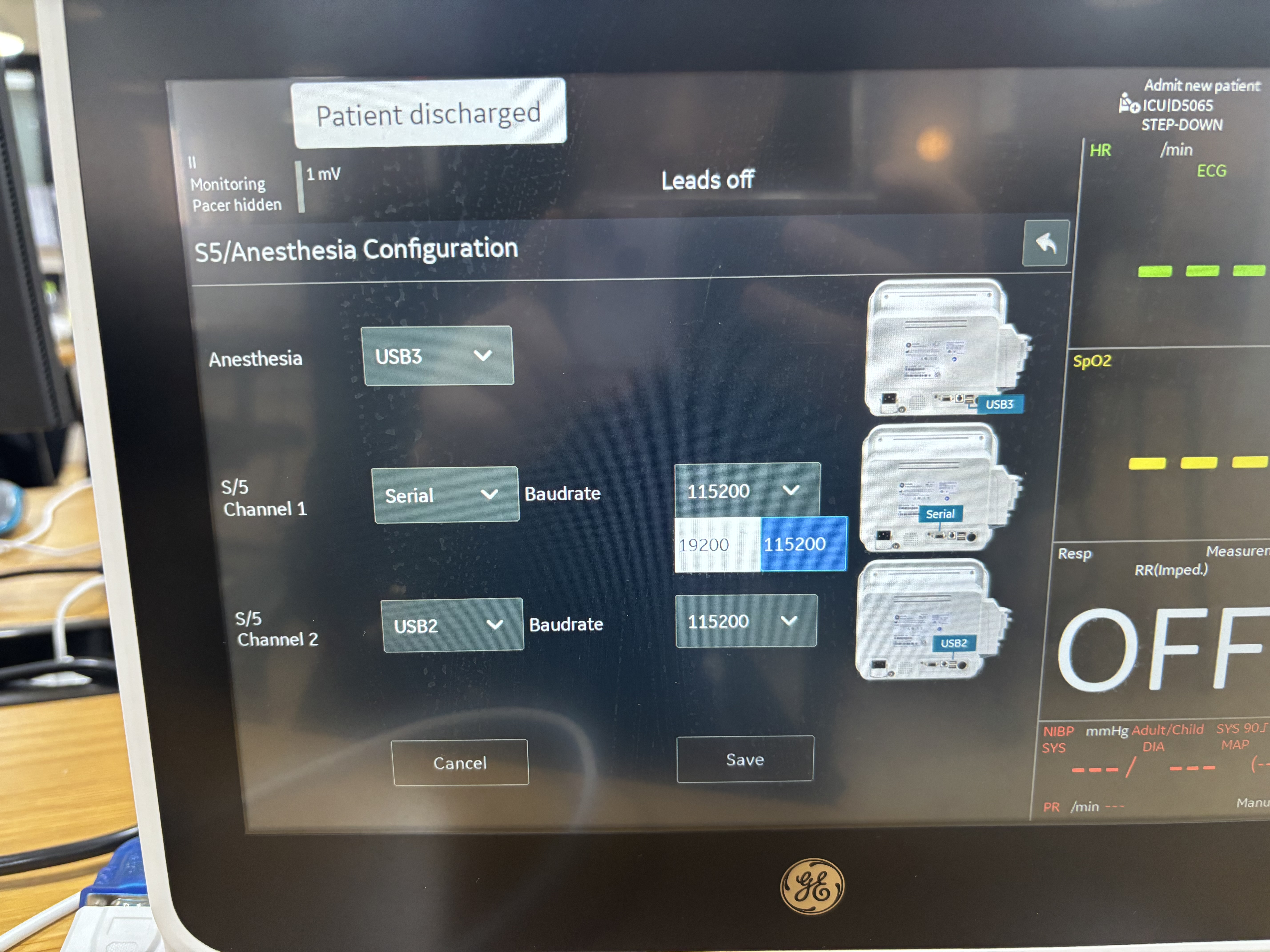

S5/Anesthesia Configuration — S/5 Channel 1 set to Serial, Baudrate 19200
  1. Tap Save.

Waveform Selection

Unlike other Datex DRI devices, the B1x5M family (B105M / B115M / B125M) defaults to ECG1 and PLETH only — the device cannot keep up with the full S5 waveform stream. Any other waveform (invasive arterial pressure, CO2, AWP, etc.) must be requested explicitly using the wavs option in vr.conf:

[DEV/B1x5M]
type=B1x5M
port=LU
wavs=ECG1,PLETH,IABP1,CO2,AWP

Arterial pressure (ART) waveform: Use IABP1 — names like ART or INVP1 are not recognized. The first invasive pressure channel (labeled ART on the monitor screen) maps to IABP1; the second to IABP2, and so on up to IABP8.

See Configuration Guide → S5 / Datex Device Settings for the full list of supported waveform names.
