GE CARESCAPE B850 / B650 / B450
Note: Protocol: GE S5 Computer Interface (the Datex DRI protocol, also used by the GE S/5, B40/B20 and B1x5M monitors). Data leaves the monitor through a USB port, not through the DB-9 serial connector on the rear panel.
| Cable | Adapter | Port | Serial | VR Device Name |
|---|---|---|---|---|
| Monitor-side USB-Serial converter — model depends on monitor software version (see below) | Null Modem adapter (F/F) | USB port on the rear panel | GE S5 Computer Interface | Bx50 |
Connection Requirements
The monitor-side USB-Serial converter must be compatible with the monitor's software version:
| Monitor Software | Monitor-Side Converter |
|---|---|
| v3.1.4 or later | StarTech ICUSB232V2 |
| v3.1–v3.1.3 | Contact GE about updating the software to a compatible version |
| v2 | ATEN UC-232A, compatible legacy revision (discontinued) |
| v2 — alternative | MBF-RS232 (Prolific PL2303TA; frequent disconnections reported) |
The MBF-RS232 has been reported to work as a monitor-side alternative on software v2, but the connection may drop frequently and interrupt recording.
Check the software version under Monitor Setup → Defaults & Service → Service and confirm converter compatibility for the installed version.
Connection Steps

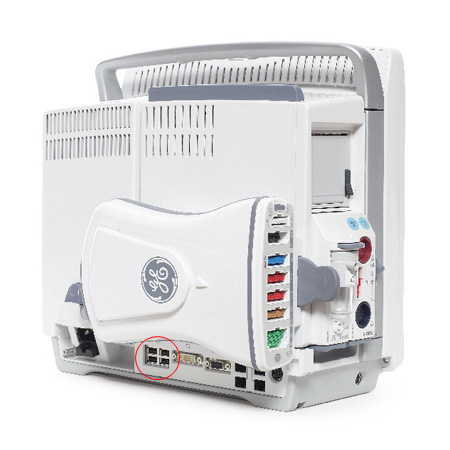

- Plug the monitor-side USB-Serial converter that matches the monitor's software version (see above) into one of the USB ports on the rear of the monitor.
- Connect a direct serial cable to the converter using a null modem adapter (F/F).
- Connect the other end to the PC's serial port or an FTDI-based USB-Serial converter.
CARESCAPE USB -- monitor-side USB-Serial converter (DB-9M) -- Null Modem adapter (F/F) -- direct serial cable -- PC-side USB-Serial converter (FTDI) -- PC
Device Configuration
No changes to the monitor settings are required for the connection described here.
Vital Recorder Setup
- Add the device as
Bx50and select the PC serial port used for the connection. - Default waveforms are
ECG1,PLETH,IABP1,CO2, andAWP. UseIABP1for invasive arterial pressure. - For waveform selection, see S5 / Datex Device Settings.
Troubleshooting
- Communication stops and does not recover on software version 2. Reconnect the cable at the monitor end. Use a PC-side FTDI converter.
- Waveforms drop out. Trim the
wavs=list if the monitor cannot sustain all of the defaults (wavs=1,4,8,9,13— ECG1, PLETH, IABP1, CO2, AWP).
