Belmont FMS (Rapid Infuser RI-2 / FMS2000)

Belmont FMS (Rapid Infuser RI-2 / FMS2000)

Note: The device port is DB-9 male, so a Null Modem adapter (F/F) is required. The serial port is behind the lower vent panel.

CableAdapterPortVR Device Name
direct serial cableNull modem (F/F)Serial port, behind the lower vent panelFMS

Connection Steps

  1. Connect a direct serial cable to the serial port using a null modem adapter (F/F).

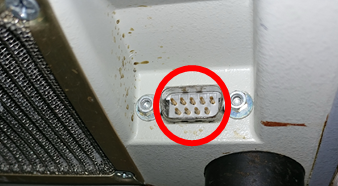

Belmont FMS chassis beside the lower vent grille with the recessed DB-9 male serial connector circled

Device Configuration

No pump-side configuration is required.

Vital Recorder Setup

  • Add the device in Vital Recorder as FMS and select the PC serial port used for the connection.
