VitalDB Web API
Introduction
Anyone can access and use the VitalDB platform by application programming interface (API). All API’s can be called using the HTTPS standard protocol.
Endpoints
Endpoint URL | Method | Description |
POST | Issue an access token which is required to access VitalDB APIs. | |
POST | Upload real-time vital sign data of inputted vrcode to Web Monitoring. | |
GET | Get array of vital sign data of designated vrcode from inputted start time to inputted end time. | |
GET | Read file list of uploaded user files. | |
GET | Get a tracklist of files. | |
GET | Download a vital file from the cloud. | |
POST | Upload a vital file to the cloud. |
Login API
Issue an access token which is required to access VitalDB APIs.
Endpoint
Method
POST
Parameters
Please url-encode (RFC1738) the parameters if it has any special characters.
Field | Type | Required | Description |
id | String | Required | VitalDB user ID |
pw | String | Required | VitalDB user password |
Return Value
Content-type: application/json
Field | Type | Description |
access_token | String | An access token which is required to access VitalDB APIs |
token_type | String | Always “bearer”, which is used for OAuth2. |
expires_in | Number | Always 3600. The access token expires in an hour. |
Sample Codes
curl -v -d “id=userid&pw=password” https://vitaldb.net/api/login |

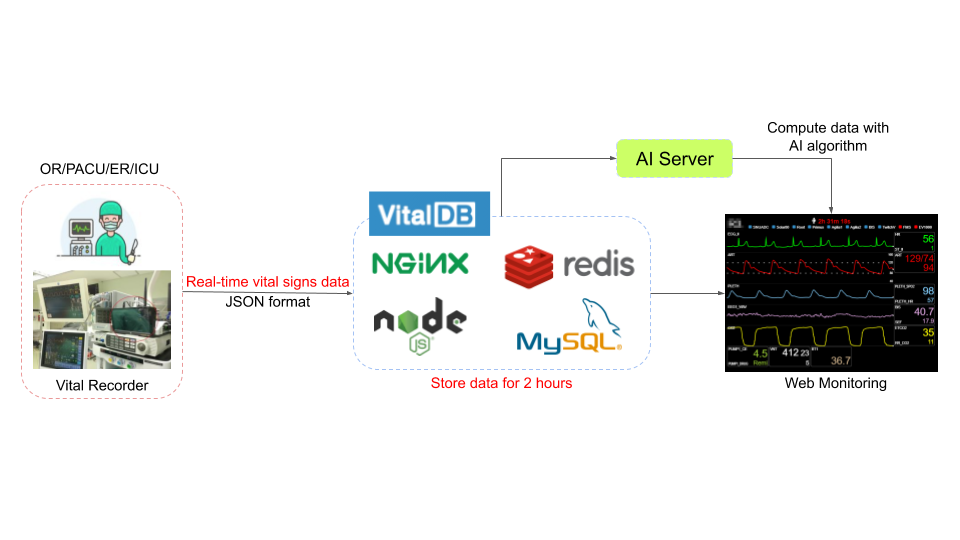

Web Monitoring API
A protocol for uploading vital signs data to VitalDB web monitoring.
Send
Upload real-time vital sign data of inputted vrcode to Web Monitoring.
Endpoint
Method
POST
Parameters
Please url-encode (RFC1738) the parameters if it has any special characters.
Field | Type | Required | Description |
data | JSON String | Required | The posted data must include variables listed below. |
Variable Name | Description |
vrcode | Unique identification code of Vital Recorder consisting of 9 digit random numbers and alphabets. The vrcode should be registered by user on the VitalDB Web Monitoring page before use. |
rooms | array of real-time vital sign data for each tab (room/bed) in Vital Recorder |
Each room is formatted as follows:
Variable Name | Description |
roomname | name of a tab |
dtstart | start time of the transmitted data in unix timestamp |
dtend | end time fo the transmitted data in unix timestamp |
ptcon | whether or not patient is connected to Vital Recorder |
recording | whether or not Vital Recorder is recording vital signs data |
devs | array of information of devices connected to Vital Recorder |
trks | array of track data such as ECG, HR, etc. |
evts | array of event |
Each device is formatted as follows:
Variable Name | Description |
name | device name |
status | ON/OFF status of the device |
port | name of a serial communications port where the device is connected to |
Each track is formatted as follows:
Variable Name | Description |
name | track name |
type | type of the track data: wave, number, string |
srate | sample rate of the data |
unit | unit of the track |
recs | array of real-time data consisting of track value and time of the value |
Sample Data
A sample data string in JSON is as below.
sample_data = '{"ver":"1.8.8.3","vrcode":"9a9uewrsv","rooms":[{"roomname":"DEMO","seqid":59,"dtstart":1607071644.806051,"dtend":1607071645.808981,"dtcase":1607071590.292408,"ptcon":1,"dtapp":1607071577.160322,"recording":1,"dgmt":-32400,"devs":[{"type":"Demo","name":"Demo","status":"on","ycable":"0","port":""}],"trks":[{"id":2109467744,"name":"EEG","type":"wav","montype":"EEG_WAV","srate":100,"mindisp":-100,"maxdisp":100,"color":"#dda0dd","unit":"uV","recs":[{"dt":1607071644.806051,"val":[-56.75,-58.05,-61,-65.2,-69.35,-71.05,-69.95,-66.65,-62.2,-54.05,-54.05,-55.05,-56.25,-61.15,-65.25,-68.15,-65.3,-63.4,-59,-53.7,-51.05,-50.85,-52.4,-56.65,-59.3,-62.1,-65.55,-65.8,-62.25,-58.95,-54.9,-50.65,-49.95,-49.95,-47.35,-46,-46.35,-46.7,-49.95,-52.65,-55.9,-59.5,-57.95,-55.25,-53.35,-49.4,-49.4,-53.05,-59,-56.9,-52.4,-47.1,-35,-32.9,-32.5,-31.9,-36.1,-38.75,-43.25,-49.55,-51.95,-54.9,-53.55,-46.9,-43.65,-39.25,-27.25,-26.05,-25.7,-27.7,-40.2,-47.2,-52.1,-54.65,-54,-51.35,-48.7,-41.25,-40.15,-40.1,-39.8,-44.3,-48.4,-52.4,-56.3,-57.1,-59.2,-60.6,-64.1,-67.2,-68.4,-70.85,-69.25,-66.4,-65.65,-68.15,-68.95,-68.9,-66.6,-64.25]}]},{"id":2109469360,"name":"NIBP_DBP","type":"num","montype":"NIBP_DBP","color":"#ffffff","unit":"mmHg","recs":[{"dt":1607071643.367762,"val":59},{"dt":1607071645.369666,"val":62}]}]}]}'
Sample Codes
curl -v -X POST https://vitaldb.net/api/send -d "data=sample_data"
<?php
// A sample PHP Script to POST data using cURL
// MUST URL-encodes the data - https://www.php.net/manual/en/function.urlencode.php
$json = "data=".urlencode($sample_data);
// Initiate new cURL
$ch = curl_init('https://vitaldb.net/api/send');
curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);
curl_setopt($ch, CURLINFO_HEADER_OUT, true);
curl_setopt($ch, CURLOPT_POST, true);
curl_setopt($ch, CURLOPT_POSTFIELDS, $json);
curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, false);
curl_setopt($ch, CURLOPT_SSL_VERIFYHOST, false);
// Submit the POST request
$result = curl_exec($ch);
// Print curl information
var_dump(curl_getinfo($ch));
// Print response
var_dump($result);
Receive
Get array of vital sign data of designated vrcode from inputted start time to inputted end time.
Endpoint
https://vitaldb.net/api/receive
Method
GET
Parameter
Field | Type | Required | Description |
vrcode | String | Required | Unique identification code of Vital Recorder consisting of 9 digit random numbers and alphabets. The vrcode should be registered by user on the VitalDB Web Monitoring page before use. |
bedname | String | Optional | Bedname (a.k.a roomname as shown in the sample data from the Send section) |
dtstart | Unix Timestamp | Optional | Start time in Unix Timestamp format |
dtend | Unix Timestamp | Optional | End time in Unix Timestamp format. Default: dtstart + 60, which is an hour after from dtstart |
Return Value
Content-Type: application/json; charset=utf-8
Content-Encoding: gzip
Gzipped JSON encoded array of data with the same format explained in the Parameter from the Send section.
Sample Codes
curl --compressed -X POST https://vitaldb.net/api/receive -H "Content-Type:application/x-www-form-urlencoded" -d
"vrcode=xxxxxxxx&bedname=xxxx&dtstart=1628831566" > output.txt
Sample code below downloads real-time data from the bed whose vrcode is ‘sample’.
Please use “pip install vitaldb” before running our sample code.
import vitaldb
if vitaldb.login(id="vitaldb_test", pw="vitaldb_test"):
res = vitaldb.receive('sample')
print(res)
Myfiles API
File List
Read file list of uploaded user files.
Endpoint
https://vitaldb.net/api/filelist
Method
GET
Parameters
Please url-encode (RFC1738) the parameters if it has any special characters.
Field | Type | Required | Description |
access_token | String | Required | An Access token which is required to access VitalDB APIs. |
bedname | String | Optional | Filter file list by bedname (filename LIKE %bedname%) |
dtstart | Unix timestamp | Optional | Filter file list by unix timestamp (file start time >= dtstart) |
dtend | Unix timestamp | Optional | Filter file list by unix timestamp (file start time <= dtend) |
dtuploadstart | Unix timestamp | Optional | Filter file list by upload date in unix timestamp (file upload time >= dtuploadstart) |
dtuploadend | Unix timestamp | Optional | Filter file list by upload date in unix timestamp (file upload time >= dtuploadend) |
startdate | Date | Optional | Deprecation Warning: This feature can be deprecated in a future release. Filter file list by date, yyyy-mm-dd (file start time >= startdate) |
enddate | Date | Optional | Deprecation Warning: This feature can be deprecated in a future release. Filter file list by date, yyyy-mm-dd (file start time <= enddate) |
uploadstartdate | Date | Optional | Deprecation Warning: This feature can be deprecated in a future release. Filter file list by upload date, yyyy-mm-dd (file upload time >= uploadstartdate) |
uploadenddate | Date | Optional | Deprecation Warning: This feature can be deprecated in a future release. Filter file list by upload date, yyyy-mm-dd (file upload time >= uploadenddate) |
Return Value
- Content-Disposition: attachment;filename=json.gz;
- Content-Type: application/x-gzip
Field | Type | Description |
json.gz | File | A gzip compressed file that contains a list of file information in JSON format |
filename | String | File name (ex) DEMO_210415_091812.vital |
filesize | Number | File size in bytes |
dtstart | Datetime | Recording start time |
dtend | Datetime | Recording end time |
dtupload | Datetime | Uploaded or lastly modified datetime |
Sample Codes
curl -i https://vitaldb.net/api/filelist?access_token=xxxxxxxx --output json.gz |
Please use “pip install vitaldb” before running our sample code.
import vitaldb
import os
import datetime
DOWNLOAD_DIR = "path/to/folder"
if not os.path.exists(DOWNLOAD_DIR):
os.mkdir(DOWNLOAD_DIR)
if vitaldb.login('ID', 'PASSWORD'):
for f in vitaldb.filelist(bedname="D1", dtstart="2010-10-01", dtend="2010-10-02")
opath = DOWNLOAD_DIR + "/" + f['filename']
if os.path.exists(opath):
continue
vitaldb.download(f['filename'], DOWNLOAD_DIR)
Track List
Get a tracklist of files
Endpoint
https://vitaldb.net/api/tracklist
Method
GET
Parameters
Please url-encode (RFC1738) the parameters if it has any special characters.
Field | Type | Required | Description |
access_token | String | Required | An Access token which is required to access VitalDB APIs. |
bedname | String | Optional | Filter file list by bedname (filename LIKE %bedname%) |
dtstart | Unix timestamp | Optional | Filter file list by unix timestamp (file start time >= dtstart) |
dtend | Unix timestamp | Optional | Filter file list by unix timestamp (file start time <= dtend) |
dtuploadstart | Unix timestamp | Optional | Filter file list by upload date in unix timestamp (file upload time >= dtuploadstart) |
dtuploadend | Unix timestamp | Optional | Filter file list by upload date in unix timestamp (file upload time >= dtuploadend) |
startdate | Date | Optional | Deprecation Warning: This feature can be deprecated in a future release. Filter file list by date, yyyy-mm-dd (file start time >= startdate) |
enddate | Date | Optional | Deprecation Warning: This feature can be deprecated in a future release. Filter file list by date, yyyy-mm-dd (file start time <= enddate) |
uploadstartdate | Date | Optional | Deprecation Warning: This feature can be deprecated in a future release. Filter file list by upload date, yyyy-mm-dd (file upload time >= uploadstartdate) |
uploadenddate | Date | Optional | Deprecation Warning: This feature can be deprecated in a future release. Filter file list by upload date, yyyy-mm-dd (file upload time >= uploadenddate) |
Return Value
- Content-Disposition: attachment;filename=json.gz;
- Content-Type: application/x-gzip
Field | Type | Description |
json.gz | File | A gzip compressed file that contains a list of file information in JSON format |
filename | String | File name (ex) DEMO_210415_091812.vital |
trks | Array/List | Track list (ex) [‘SNUH/SNUADC’,...] |
Download
Download a vital file from the cloud.
Endpoint
https://vitaldb.net/api/download
Method
GET
Parameters
Please url-encode (RFC1738) the parameters if it has any special characters.
Field | Type | Required | Description |
access_token | String | Required | An Access token which is required to access VitalDB APIs. Please read OAuth2 API Document for more information. |
filename | String | Required | filename to download |
asurl | Boolean | Optional | If asurl is 1, the download API will return a download url instead of .vital file. |
Return Value
Field | Type | Description |
Vital File | File | A vital file (if asurl is not 1) |
URL for downloading vital file | String | If asurl is 1, the url for downloading the vital file will be sent. |
Sample Codes
curl -i https://vitaldb.net/api/download?access_token=xxxxxxxx&filename=xxx.vital |
Sample code below downloads a specific vital file from VitalDB to a local PC and prints the track names.
Please use “pip install vitaldb” before running our sample code.
import vitaldb
if vitaldb.login(id="vitaldb_test", pw="vitaldb_test"):
vf = vitaldb.VitalFile(vitaldb.download('TEST1_211020_142621.vital'))
print(vf.get_track_names())
Sample code below reads filenames from an Excel file and downloads them to a local PC.
Please use “pip install vitaldb” before running our sample code.
import vitaldb
import os
import pandas as pd
DOWNLOAD_DIR = 'path/to/folder'
if not os.path.exists(DOWNLOAD_DIR):
os.mkdir(DOWNLOAD_DIR)
df = pd.read_excel('list.xlsx')
if vitaldb.login('ID', 'PASSWORD'):
for idx, row in df.iterrows():
filename = row['filename']
opath = DOWNLOAD_DIR + '/' + filename
if os.path.exists(opath):
continue
vitaldb.download(filename, DOWNLOAD_DIR)
Upload
Upload a vital file to the VitalDB.
Endpoint
https://vitaldb.net/api/upload
Method
POST
Parameters
Please url-encode (RFC1738) the parameters if it has any special characters.
Field | Type | Required | Description |
vrcode | String | Required | Unique identification code of Vital Recorder consisting of 9 digit random numbers and alphabets. The vrcode should be registered by user on the VitalDB Web Monitoring page before use. |
vitalfile | File | Required | File name must be in the right format: bedname_yymmdd_hhmmss.vital (ex) DEMO_210415_091812.vital |
Return Value
Success
