Web Monitoring API

Introduction

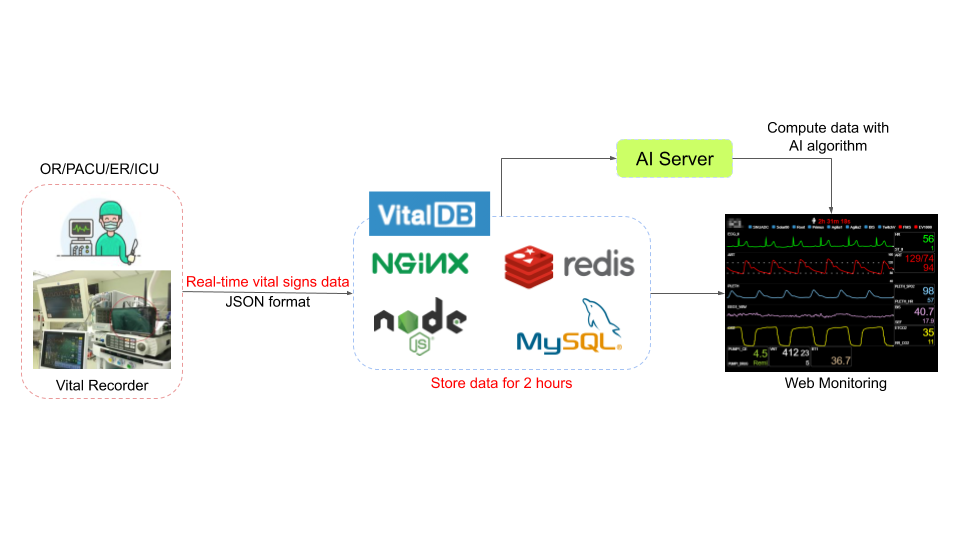

A protocol for uploading vital signs data to VitalDB web monitoring.

Upload Format

Please POST data as a URL-encoded (ref. RFC1738) JSON string to https://vitaldb.net/noti_post3.php as follows:

Variable Name	Description
vrcode	Unique identification code of Vital Recorder consisting of 9 digit random numbers and alphabets. The vrcode should be registered by user on the VitalDB Web Monitoring page before use.
rooms	array of real-time vital sign data for each tab (room/bed) in Vital Recorder

Each room is formatted as follows:

Variable Name	Description
roomname	name of a tab
dtstart	start time of the transmitted data in unix timestamp
dtend	end time fo the transmitted data in unix timestamp
ptcon	whether or not patient is connected to Vital Recorder
recording	whether or not Vital Recorder is recording vital signs data
devs	array of information of devices connected to Vital Recorder
trks	array of track data such as ECG, HR, etc.
evts	array of event

Each device is formatted as follows:

Variable Name	Description
name	device name
status	ON/OFF status of the device
port	name of a serial communications port where the device is connected to

Each track is formatted as follows:

Variable Name	Description
name	track name
type	type of the track data: wave, number, string
srate	sample rate of the data
unit	unit of the track
recs	array of real-time data consisting of track value and time of the value

Sample Data

// Sample Data String in JSON format

sample_data = '{"ver":"1.8.8.3","vrcode":"9a9uewrsv","rooms":[{"roomname":"DEMO","seqid":59,"dtstart":1607071644.806051,"dtend":1607071645.808981,"dtcase":1607071590.292408,"ptcon":1,"dtapp":1607071577.160322,"recording":1,"dgmt":-32400,"devs":[{"type":"Demo","name":"Demo","status":"on","ycable":"0","port":""}],"trks":[{"id":2109467744,"name":"EEG","type":"wav","montype":"EEG_WAV","srate":100,"mindisp":-100,"maxdisp":100,"color":"#dda0dd","unit":"uV","recs":[{"dt":1607071644.806051,"val":[-56.75,-58.05,-61,-65.2,-69.35,-71.05,-69.95,-66.65,-62.2,-54.05,-54.05,-55.05,-56.25,-61.15,-65.25,-68.15,-65.3,-63.4,-59,-53.7,-51.05,-50.85,-52.4,-56.65,-59.3,-62.1,-65.55,-65.8,-62.25,-58.95,-54.9,-50.65,-49.95,-49.95,-47.35,-46,-46.35,-46.7,-49.95,-52.65,-55.9,-59.5,-57.95,-55.25,-53.35,-49.4,-49.4,-53.05,-59,-56.9,-52.4,-47.1,-35,-32.9,-32.5,-31.9,-36.1,-38.75,-43.25,-49.55,-51.95,-54.9,-53.55,-46.9,-43.65,-39.25,-27.25,-26.05,-25.7,-27.7,-40.2,-47.2,-52.1,-54.65,-54,-51.35,-48.7,-41.25,-40.15,-40.1,-39.8,-44.3,-48.4,-52.4,-56.3,-57.1,-59.2,-60.6,-64.1,-67.2,-68.4,-70.85,-69.25,-66.4,-65.65,-68.15,-68.95,-68.9,-66.6,-64.25]}]},{"id":2109469360,"name":"NIBP_DBP","type":"num","montype":"NIBP_DBP","color":"#ffffff","unit":"mmHg","recs":[{"dt":1607071643.367762,"val":59},{"dt":1607071645.369666,"val":62}]}]}]}';

Upload Example with Sample Data

POST Data Using cURL command in terminal

curl -v -X POST https://vitaldb.net/noti_post3.php -d "data=sample_data"

POST Data Using PHP cURL

<?php

// A sample PHP Script to POST data using cURL

// MUST URL-encodes the data - https://www.php.net/manual/en/function.urlencode.php

$json = "data=".urlencode($sample_data);

// Initiate new cURL

$ch = curl_init('https://vitaldb.net/noti_post3.php');

curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);

curl_setopt($ch, CURLINFO_HEADER_OUT, true);

curl_setopt($ch, CURLOPT_POST, true);

curl_setopt($ch, CURLOPT_POSTFIELDS, $json);

curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, false);

curl_setopt($ch, CURLOPT_SSL_VERIFYHOST, false);

// Submit the POST request

$result = curl_exec($ch);

// Print curl information

var_dump(curl_getinfo($ch));

// Print response

var_dump($result);

// Print error if any

var_dump(curl_errno($ch) . curl_error($ch));

// Close cURL session handle

curl_close($ch);
