Dräger Primus

Dräger Primus

CableAdapterPortVR Device Name
Direct serial cableNoneCOM1Primus

Connection Steps

  1. Connect a direct serial cable to COM1 on the rear of the machine.

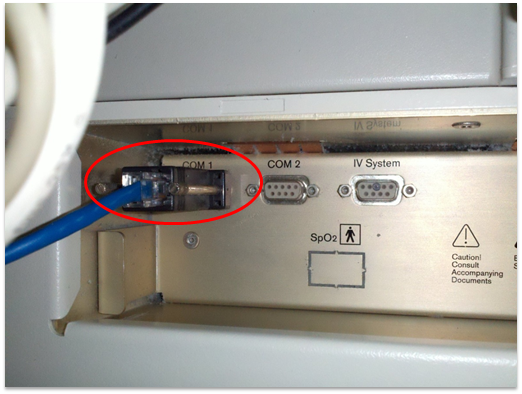

Dräger anesthesia machine rear connector panel — COM 1 (circled in red) with a serial cable attached, beside COM 2 and IV System

If COM1 is already in use, see When the COM1 Port is Already in Use below.

When the COM1 Port Is Already in Use

For the connection shown below, use a Y-cable with a receive-only branch to Vital Recorder. Enable Read Only Mode when adding the device.

Y-Cable Pinout

Machine end — DB-9MExisting connection — DB-9F (CON1)PC end — DB-9F (CON2)
2 (TxD from machine)22 (RxD at PC)
3 (RxD to machine)3Not connected
5 (GND)55 (GND)

Only the machine's transmit signal and ground connect to the PC branch.

Y-cable pin wiring diagram — machine TX (pin 2) and GND (pin 5) branch to both CON1 and CON2 (PC Vital Recorder, read-only option); RX (pin 3) goes only to CON1

Device Configuration

No changes to the device settings are required.

Vital Recorder Setup

Add the device as Primus and select the PC serial port used for the connection.
